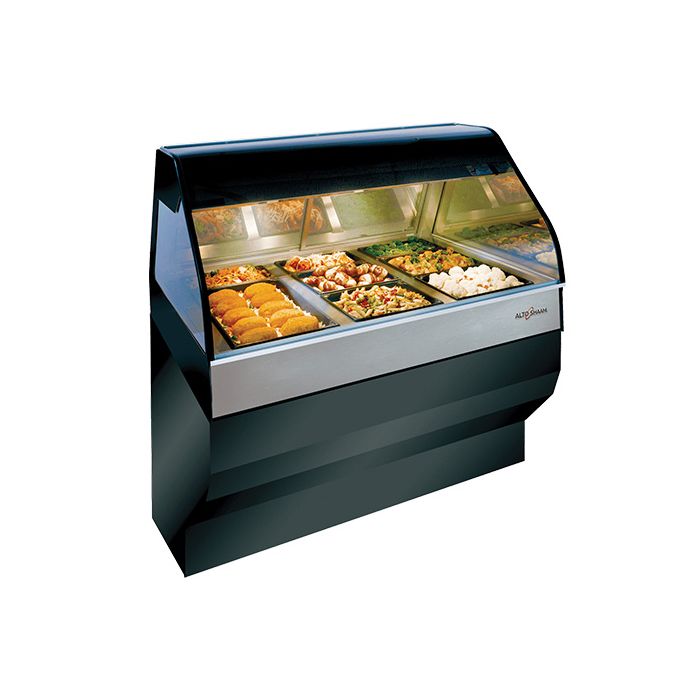

ALTO-SHAAM HEATED DISPLAY CASE WITH STATIONARY BASE 22KG (1227 x 1204 x 1227 MM) ED3SYS-48

Features
SKU
AS-ED3SYS-48
RM0.00
Email to a Friend
In Stock

ALTO-SHAAM · Model: ED3SYS-48

Pricing available on request

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support
Key Specifications
ModelED3SYS-48
BrandALTO-SHAAM
Size (LxWxH) mm1227 x 1204 x 1227
Weight (KG)204
Warranty One Year Manufacturing Defect
OriginUnited States

Features

  • Fanless, waterless Halo Heat technology
  • Overhead LED lighting
  • Adjustable thermostats 1-10 per heat zone for top and bottom heat
  • Ceramic top heaters
  • Operator-side work shelf and cutting board
  • Sliding back doors with mirrored glass
  • Tempered glass front with self-supported lifting mechanism
  • Removable back doors and side glass panels
  • 3 pan zones to hold standard pan sizes (GN)
  • 2 heat zones
  • 2 heat-on indicator lights
  • 4 long pan dividers (1002584)
  • 3 short pan dividers (1002585)
  • 9 short pan dividers (11318)
Model ED3SYS-48
Capacity
**will also accept 100 mm deep pans		 Maximum 22 kg
Maximum 36 liters
3 GN 1/1 (305 x 508 x 64 mm)
3 GN 1/3 (305 x 152 x 64 mm)
6 GN 1/2 (305 x 254 x 64 mm)
2 full-size sheet pans (457 x 660 x 25.4 mm)
Voltage 208V, 50/60 Hz, 1PH
240V, 50/60 Hz, 1PH
230V, 50/60 Hz, 1PH
Back clearance 270 mm
Heat of rejection Heat Gain qs 320 BTU/hr
Heat Gain qs 0.09 kW
Well dimension (L x W x D) 1151 x 692 x 114 mm
Exterior dimension (L x W x H) 1227 x 1204 x 1227 mm
Packing dimension (L x W x H) 1524 x 1397 x 1651 mm
Net weight 204 kg
Gross weight 227 kg
FILE UL - Spec Sheet 762.18 kB Download ↓ FILE CE - Spec Sheet 731.59 kB Download ↓ FILE Brochure 2.47 MB Download ↓ FILE Heated Display - Sell Sheet 29.92 MB Download ↓ FILE Operators Manual 2.38 MB Download ↓

Complete Your Setup

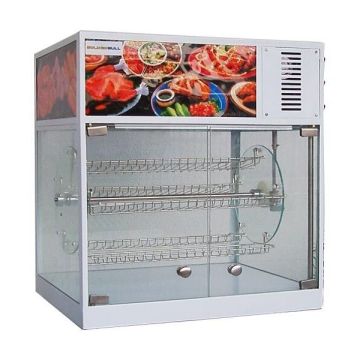

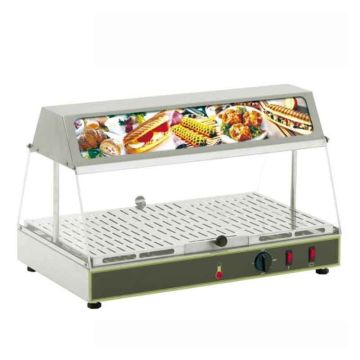

FREZMAC DISPLAY WARMER 136L (904 x 486 x 636) MM FXCR-136L FREZMAC DISPLAY WARMER 136L (904 x 486 x 636) MM FXCR-136L RM 1,600.00 Golden Bull Rotating Food Display Warmer 240V WYD-826 Golden Bull Rotating Food Display Warmer 240V WYD-826 RM 2,400.00 HATCO Glo-Ray Portable Food Warmer with Toggle Switch & Base Heat GRFFB HATCO Glo-Ray Portable Food Warmer with Toggle Switch & Base Heat GRFFB RM 4,480.00 RM 4,100.00 ROLLERGRILL One Levels Display Warmer With Humidity Control & Top Illuminated Display WDL-100 INOX ROLLERGRILL One Levels Display Warmer With Humidity Control & Top Illuminated Display WDL-100 INOX RM 3,040.00 RM 2,780.00
