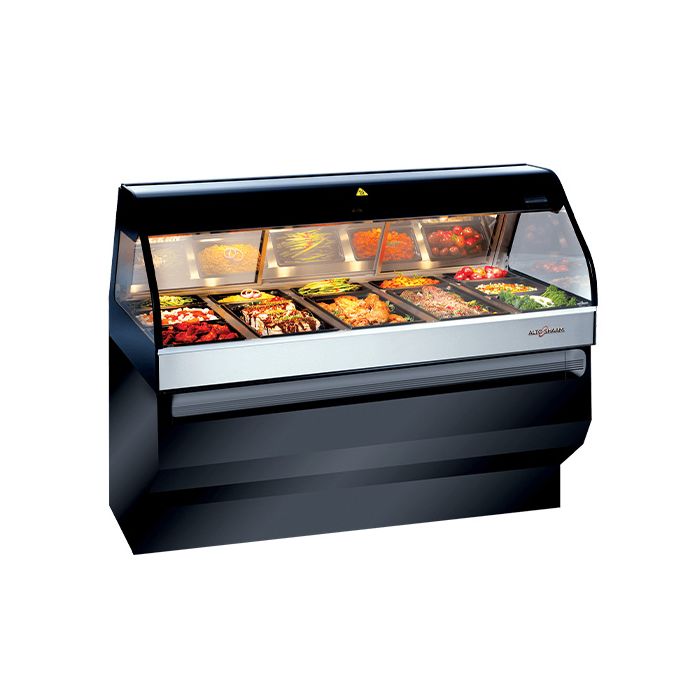

ALTO-SHAAM HEATED DISPLAY CASE WITH STATIONARY BASE 36KG (1836 x 1205 x 1227 MM) ED3SYS-72
ALTO-SHAAM HEATED DISPLAY CASE WITH STATIONARY BASE 36KG (1836 x 1205 x 1227 MM) ED3SYS-72
Features
- SKU
- AS-ED3SYS-72
RM0.00
In Stock
ALTO-SHAAM · Model: ED3SYS-72
Pricing available on request
🚚 Free delivery (WM)
🔧 Installation included
🛡️ 2-year warranty
💬 WhatsApp support
Key Specifications
ModelED3SYS-72
BrandALTO-SHAAM
Size (LxWxH) mm1836 x 1205 x 1227
Weight (KG)282
Warranty One Year Manufacturing Defect
OriginUnited States
Features
- Fanless, waterless Halo Heat technology
- Overhead LED lighting
- Adjustable thermostats 1-10 per heat zone for top and bottom heat
- Ceramic top heaters
- Operator-side work shelf and cutting board
- Sliding back doors with mirrored glass
- Tempered glass front with self-supported lifting mechanism
- Removable back doors and side glass panels
- 5 pan zones to hold standard pan sizes (GN)
- 2 heat zones
- 2 heat-on indicator lights
- 4 long pan dividers (1002584)
- 5 short pan dividers (1002621)
- 15 short pan dividers (11318)
| Model | ED3SYS-72 | |
| Capacity **will also accept 100 mm deep pans |
Maximum 36 kg | |
| Maximum 60 liters | ||
| 5 GN 1/1 (305 x 508 x 64 mm) | ||
| 5 GN 1/3 (305 x 152 x 64 mm) | ||
| 10 GN 1/2 (305 x 254 x 64 mm) | ||
| 3 full-size sheet pans (457 x 660 x 25.4 mm) | ||
| Voltage | 208V, 50/60 Hz, 1PH | |
| 240V, 50/60 Hz, 1PH | ||
| 230V, 50/60 Hz, 1PH | ||
| Back clearance | 270 mm | |
| Heat of rejection | Heat Gain qs | 407 BTU/hr |
| Heat Gain qs | 0.12 kW | |
| Well dimension (L x W x D) | 1761 x 692 x 114 mm | |
| Exterior dimension (L x W x H) | 1836 x 1205 x 1227 mm | |
| Packing dimension (L x W x H) | 2159 x 1397 x 1651 mm | |
| Net weight | 282 kg | |
| Gross weight | 317 kg | |
