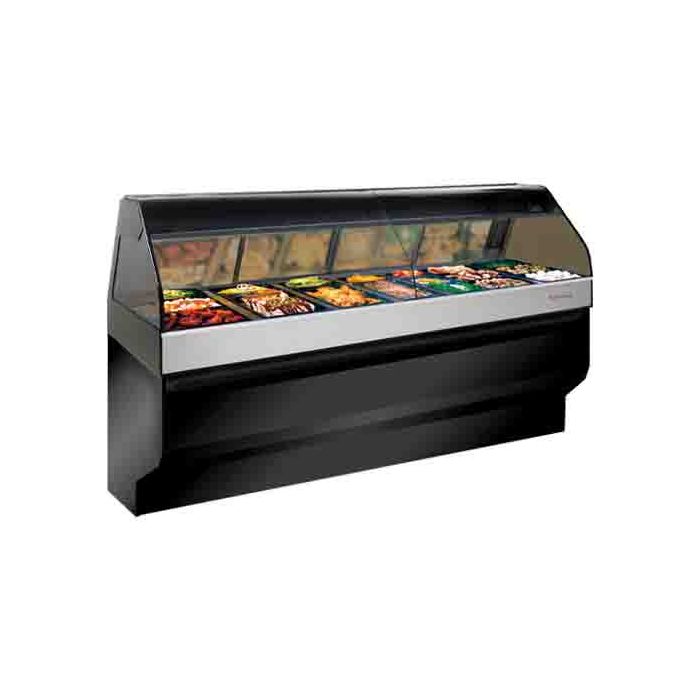

ALTO-SHAAM HEATED DISPLAY CASE WITH STATIONARY BASE 51KG (2438 x 1204 x 1225 MM) ED3SYS-96

Features
SKU
AS-ED3SYS-96
RM0.00
Email to a Friend
In Stock

ALTO-SHAAM · Model: ED3SYS-96

Pricing available on request

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support
Key Specifications
ModelED3SYS-96
BrandALTO-SHAAM
Size (LxWxH) mm2438 x 1204 x 1225
Weight (KG)325
Warranty One Year Manufacturing Defect
OriginUnited States

Features

  • Fanless, waterless Halo Heat technology
  • Overhead LED lighting
  • Adjustable thermostats 1-10 per heat zone for top and bottom heat
  • Ceramic top heaters
  • Operator-side work shelf and cutting board
  • Sliding back doors with mirrored glass
  • Tempered glass front with self-supported lifting mechanism
  • Removable back doors and side glass panels
  • 7 pan zones to hold standard pan sizes (GN)
  • 3 heat zones
  • 3 heat-on indicator lights
  • 6 long pan dividers (1002590)
  • 7 short pan dividers (1002621)
  • 21 short pan dividers (11318)
Model ED3SYS-96
Capacity
**will also accept 100 mm deep pans		 Maximum 51 kg
Maximum 84 liters
7 GN 1/1 (305 x 508 x 64 mm)
7 GN 1/3 (305 x 152 x 64 mm)
14 GN 1/2 (305 x 254 x 64 mm)
4 full-size sheet pans (457 x 660 x 25.4 mm)
Voltage 208V, 50/60 Hz, 1PH
240V, 50/60 Hz, 1PH
230V, 50/60 Hz, 1PH
Back clearance 270 mm
Heat of rejection Heat Gain qs 456  BTU/hr
Heat Gain qs 0.13 kW
Well dimension (L x W x D) 2370 x 692 x 114 mm
Exterior dimension (L x W x H) 2438 x 1204 x 1225 mm
Packing dimension (L x W x H) 2540 x 1397 x 1651 mm
Net weight 325 kg
Gross weight 361 kg
FILE UL - Spec Sheet 851.65 kB Download ↓ FILE CE - Spec Sheet 834.69 kB Download ↓ FILE Brochure 2.47 MB Download ↓ FILE Heated Display - Sell Sheet 29.92 MB Download ↓ FILE Operators Manual 2.38 MB Download ↓

Complete Your Setup

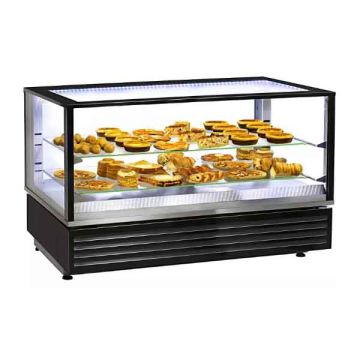

ROLLERGRILL Two Levels Merchandiser Warming Display with Lighting Device & Humidity Control HD 1200 ROLLERGRILL Two Levels Merchandiser Warming Display with Lighting Device & Humidity Control HD 1200 RM 9,410.00 RM 8,610.00 HATCO Glo-Ray 24" Infrared Food Warmer with Infinite Switch-High Wattage GRAH-24 HATCO Glo-Ray 24" Infrared Food Warmer with Infinite Switch-High Wattage GRAH-24 RM 1,760.00 RM 1,610.00 ANVIL Food Warmer Dry Heat - 1 Division FWW0001 ANVIL Food Warmer Dry Heat - 1 Division FWW0001 RM 1,750.00 RM 1,650.00 HATCO Glo-Ray Fry Holding Stations GRFHS-21 HATCO Glo-Ray Fry Holding Stations GRFHS-21 RM 13,330.00 RM 12,200.00
