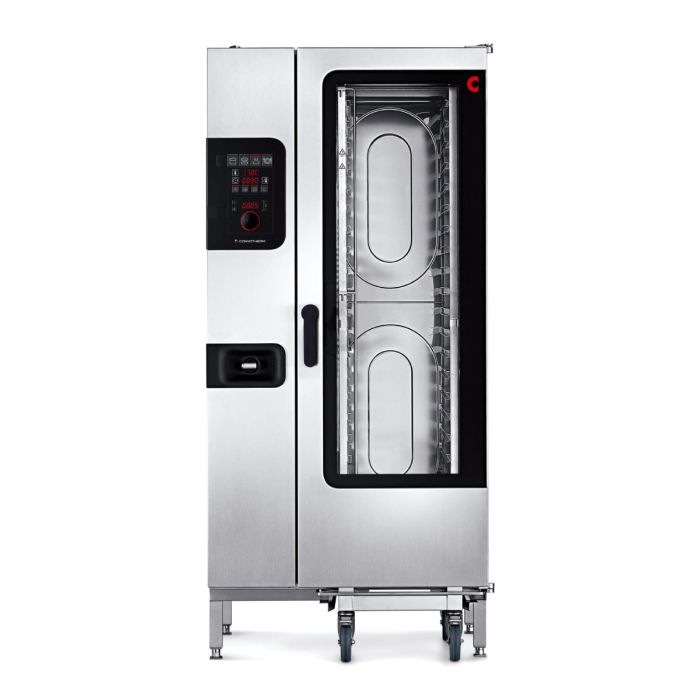

CONVOTHERM 4 Electric Boiler 20.10 easyDial With Disappearing Door & Semi-automatic Clean C4eD20.10 EB

calcActive())">
CONVOTHERM 4 Electric Boiler 20.10 easyDial With Disappearing Door & Semi-automatic Clean C4eD20.10 EB
easyDial user interface
- SKU
- CFN-C4eD20.10 EBDD
RM140,650.00
RM132,750.00
Save to project
CONVOTHERM 4 Electric Boiler 20.10 easyDial With Disappearing Door & Semi-automatic Clean C4eD20.10 EB
In Stock
Convotherm · Model: C4eD20.10 EB
or /mo × months at 0% instalment
🚚 Free delivery (WM)
🔧 Installation included
🛡️ 2-year warranty
💬 WhatsApp support
Key Specifications
ModelC4eD20.10 EB
BrandConvotherm
Size (LxWxH) mm892 x 240 x 1086
Weight (KG)285
Voltage3N~ 400V 50/60Hz
Warranty One Year Manufacturing Defect
OriginGermany
easyDial user interface
- Central control unit, Convotherm-Dial (C-Dial)
- Digital display
- Regenerating function – regenerates products to their peak level
- 99 cooking profiles each containing up to 9 steps
Features
- Steam generated by high-performance boiler outside the cooking chamber
- ACS+ operating modes: Steam, Combi-steam, Convection
- ACS+ (Advanced Closed System +) operating modes:
- Steam (30-130°C) with guaranteed steam saturation
- Combi-steam (30-250°C) with automatic moisture control
- Convection (30-250 °C) with optimized heat transfer
- ACS+ extra functions:
- Crisp&Tasty – 5 moisture-removal settings
- BakePro – 5 levels of traditional baking
- HumidityPro – 5 humidity settings
- Controllable fan – 5 speed settings
- HygienicCare: Hygienic handles
- Semi-automatic cleaning system
- TriColor indicator ring – indicates the current operating status
- Disappearing door: more space and greater safety at work
- Core temperature probe
- USB port integrated in the control panel
- HACCP data storage
- Preheat and cool down function
| Model | C4eD20.10 EB | |
| Max. number of food containers | GN 1/1 20 | |
| Electrical supply | Voltage | 3N~ 400V 50/60Hz |
| Rated power consumption | 38.9 kW | |
| Rated current | 56.2 A | |
| Fuse rating | 63 A | |
| Water connection | Water supply | 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'') |
| Flow pressure | 150 - 600 kPa (1.5 - 6 bar) | |
| Max. water flow rate | 15 litres/min | |
| Product dimension (L x W x H) | 892 x 240 x 1086 mm | |
| Packing dimension (L x W x H) | 1165 x 2150 x 970 mm | |
| Net weight | 265 kg | |
| Gross weight | 305 kg | |
