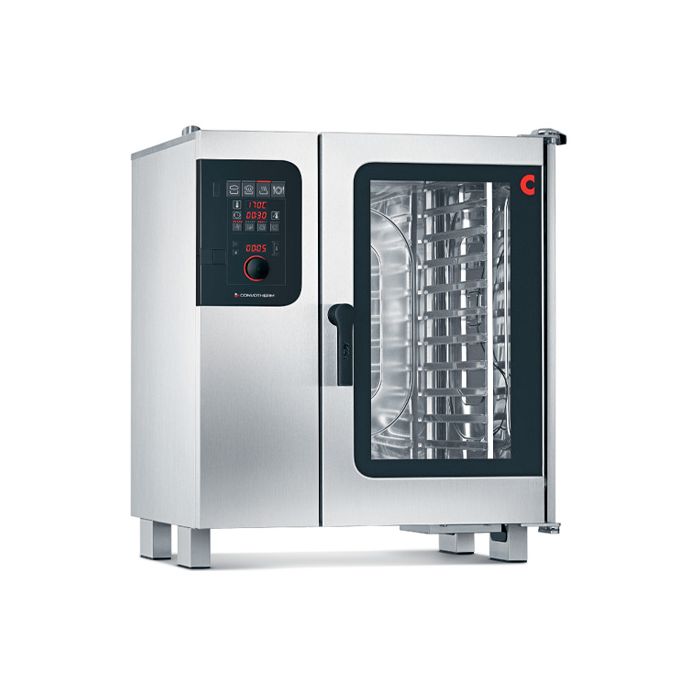

CONVOTHERM Combi oven Maxx Pro easyDial C4eD 10.10 ES

easyDial user interface
SKU
CFN-C4eD 10.10 ES
RM64,130.00
RM60,520.00
Email to a Friend
In Stock

Convotherm · Model: C4eD 10.10 ES

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support
Key Specifications
ModelC4eD 10.10 ES
BrandConvotherm
Size (LxWxH) mm875 x 792 x 1058
Weight (KG)119 
Voltage3N~ 400V 50/60Hz
Warranty One Year Manufacturing Defect
OriginGermany

easyDial user interface

  • Central control unit, Convotherm-Dial (C-Dial)
  • Digital display
  • Regenerating function – regenerates products to their peak level
  • 99 cooking profiles each containing up to 9 steps

Features

  • Steam generated by injecting water into the oven cavity
  • ACS+ operating modes: steam, combi-steam, convection
  • ACS+ (Advanced Closed System +) operating modes:
    • Steam (30-130°C) with guaranteed steam saturation
    • Combi-steam (30-250°C) with automatic moisture control
    • Convection (30-250 °C) with optimized heat transfer
  • ACS+ extra functions:
    • Crisp&Tasty – 5 moisture-removal settings
    • BakePro – 5 levels of traditional baking
    • HumidityPro – 5 humidity settings
    • Controllable fan – 5 speed settings
  • HygienicCare: Hygienic handles
  • ConvoClean: Fully automatic cleaning system, with optional single-dose dispensing
  • TriColor indicator ring – indicates the current operating status
  • Disappearing door with triple glazing: more space and greater safety at work (available optionally at an additional charge)
  • Core temperature probe
  • USB port integrated in the control panel
  • HACCP data storage
  • Preheat and cool down function
Model C4eD 10.10 ES
Max. number of food containers GN 1/1 10+1
Electrical supply Voltage 3N~ 400V 50/60Hz
Rated power consumption 19.5 kW
Rated power consumption with smoker 19.8 kW
Rated current 28.1A
Fuse rating 32A
Water connection Water supply 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'')
Flow pressure 150 - 600 kPa (1.5 - 6 bar)
Max. water flow rate 15 litres/min
Product dimension (L x W x H) 875 x 792 x 1058 mm
Packing dimension (L x W x H) 1100 x 1300 x 940 mm
Net weight 119 kg
Gross weight 152 kg
