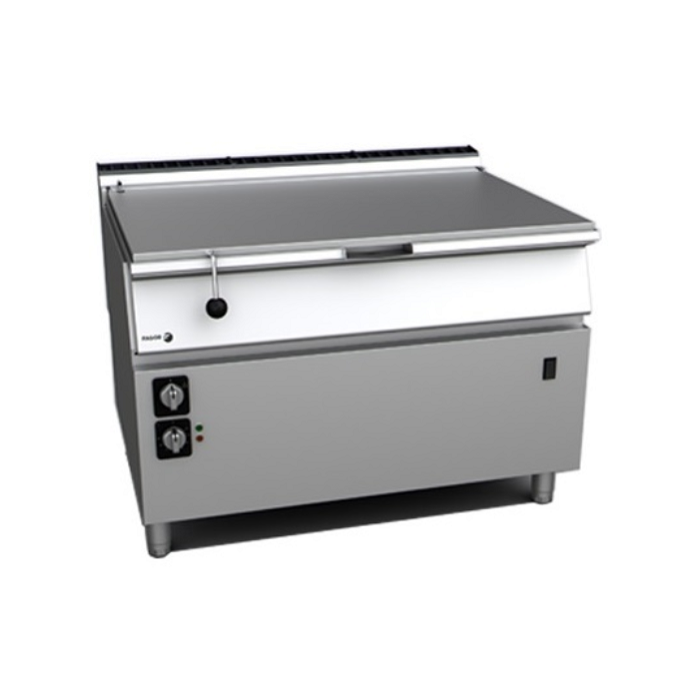

FAGOR Electric Tilting Bratt Pans SB-E915-IM

calcActive())">
FAGOR Electric Tilting Bratt Pans SB-E915-IM
Features
- SKU
- UC-SB-E915-IM
RM43,750.00
RM42,680.00
Save to project
FAGOR Electric Tilting Bratt Pans SB-E915-IM
In Stock
Fagor · Model: SB-E915-IM
or /mo × months at 0% instalment
🚚 Free delivery (WM)
🔧 Installation included
🛡️ 2-year warranty
💬 WhatsApp support
Key Specifications
ModelSB-E915-IM
BrandFagor
Energy TypeElectric
Size (LxWxH) mm1200 x 930 x 850
Weight (KG)233
Voltage380-415V 50/60Hz
Capacity (ℓ)120
Warranty One Year Manufacturing Defect
OriginSpain
Features
- Laser-cut joints, automatic welding and polishes.
- Motorised or crank operated elevation systems to raise the pan until it is vertical and empty it completely.
- Pan design with a rounded corners and no edges.
- Flange around the perimeter to stop any condensed water from spilling over.
- Pans filled with water by means of electric valve operated with switch on the front of the machine.
- Double walled lid with drainer at the back.
- Lid balance system by springs.
- Micro breaking switch halts heating when the pan is raised.
- High temperature enamelled cast iron flue protector.
- Front access lid handle.
- Electrically heated models use shielded stainless steel heating elements located under the bottom of the pan.
| Model | SB-E915-IM |
| Raising system | Motorized |
| Tank type | Stainless steel |
| Capacity | 120 litre |
| Surface | 1130 x 616 mm |
| Total power | 22.5 kW |
| Voltage | 380-415V 50/60Hz |
| Water pressure | 200-400kPa (2-4 bar) |
| Water protection | IPX5 |
| Temperature range | 50 to 310 °C |
| Bottom of the wells | 8 mm for iron pans and 10 mm for stainless steel pans |
| Dimension (L x W x H) | 1200 x 930 x 850 mm |
| Packaging dimension (L x W x H) | 1022 x 1240 x 1140 mm |
| Net weight | 233 kg |
| Gross weight | 270 kg |
