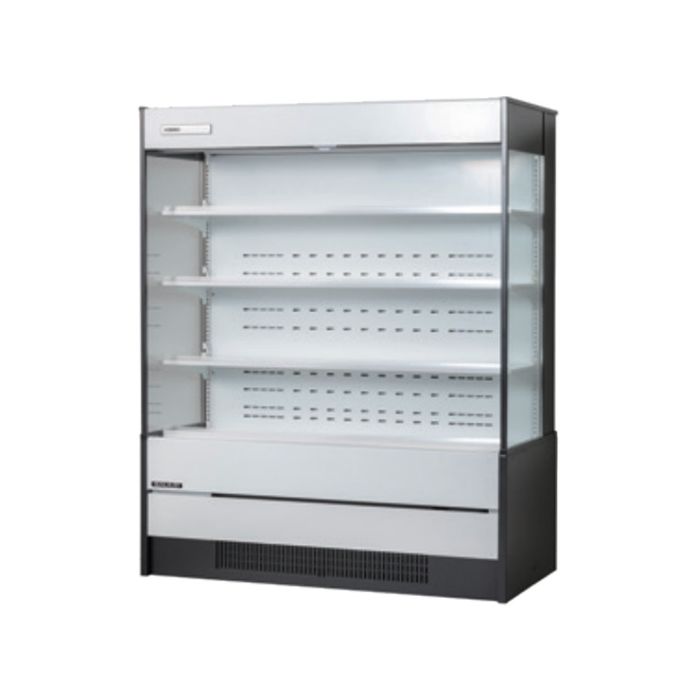

GALILEI Multi-Deck Open Spot Showcase (Drain Tank) MEU-4AGHJT3L

calcActive())">
GALILEI Multi-Deck Open Spot Showcase (Drain Tank) MEU-4AGHJT3L
Model
MEU-4AGHJT3L
Effective capacity
353 litres
Power supply
Single phase 220V 50Hz
Cooling performance
3°C to 20°C
(No load and within ambient air condition)
Compressor
1250W (DC inverter)
Refrigerant
R-404A
Temperature control
Microcomputer control, digital display
Defrost control
Microcomputer control, off cycle defrost
Applicable breaker capacity
Single phase 220V 15A 50Hz
Power cord
2.0 m (Plug with earth wire)
Voltage range
220V ±6%
Cooling
Operation current
4.5A
Maximum current
7.5A
Power consumption
950W
Power factor
96%
Defrosting
Operation current
0.6A
Power consumption
76W
Refrigerant control method
Electronic expansion valve
Condenser
Fin and tube type, forced air-cooling
Evaporator
Fin and tube type, forced cold air circulation
Radiation of heat capacity
4840W
Accessories
Alarm buzzer (Standard equipment)
Night cover
Caster
Drain tank
Other accessories
Condenser filter
Internal lighting (LED : 11.2W x1)
Interior material
Color steel, painted steel
Exterior material
Color steel, painted steel
Galvanized steel, pair glass
Resin molded product
Ambient air condition
Temperature
27°C or less
Humidity
70% or less
Wind speed
0.2 m/s or less
Insulation material
Polyurethane foam
Shelf
Steel plate shelf (Variable 0° or 8°)
Display area
1.40 m²
Maximum weight
40 kg/per shelf
Outside dimension (L x W x H)
1200 x 600 x 1500 mm
Inside dimension (L x W x H)
1155 x 319 x 920 mm
Weight
200 kg
- SKU
- FG-MEU-4AGHJT3L
RM13,600.00
Save to project
GALILEI Multi-Deck Open Spot Showcase (Drain Tank) MEU-4AGHJT3L
In Stock
Galilei · Model: MEU-4AGHJT3L
or /mo × months at 0% instalment
🚚 Free delivery (WM)
🔧 Installation included
🛡️ 2-year warranty
💬 WhatsApp support
Key Specifications
ModelMEU-4AGHJT3L
BrandGalilei
Size (LxWxH) mm1200 x 600 x 1500
Weight (KG)200
VoltageSingle phase 220V 50Hz
Capacity (ℓ)353
Warranty Two Years Manufacturing Defects
OriginThailand
| Model | MEU-4AGHJT3L | |
| Effective capacity | 353 litres | |
| Power supply | Single phase 220V 50Hz | |
| Cooling performance | 3°C to 20°C | |
| (No load and within ambient air condition) | ||
| Compressor | 1250W (DC inverter) | |
| Refrigerant | R-404A | |
| Temperature control | Microcomputer control, digital display | |
| Defrost control | Microcomputer control, off cycle defrost | |
| Applicable breaker capacity | Single phase 220V 15A 50Hz | |
| Power cord | 2.0 m (Plug with earth wire) | |
| Voltage range | 220V ±6% | |
| Cooling | Operation current | 4.5A |
| Maximum current | 7.5A | |
| Power consumption | 950W | |
| Power factor | 96% | |
| Defrosting | Operation current | 0.6A |
| Power consumption | 76W | |
| Refrigerant control method | Electronic expansion valve | |
| Condenser | Fin and tube type, forced air-cooling | |
| Evaporator | Fin and tube type, forced cold air circulation | |
| Radiation of heat capacity | 4840W | |
| Accessories | Alarm buzzer (Standard equipment) | |
| Night cover | ||
| Caster | ||
| Drain tank | ||
| Other accessories | Condenser filter | |
| Internal lighting (LED : 11.2W x1) | ||
| Interior material | Color steel, painted steel | |
| Exterior material | Color steel, painted steel | |
| Galvanized steel, pair glass | ||
| Resin molded product | ||
| Ambient air condition | Temperature | 27°C or less |
| Humidity | 70% or less | |
| Wind speed | 0.2 m/s or less | |
| Insulation material | Polyurethane foam | |
| Shelf | Steel plate shelf (Variable 0° or 8°) | |
| Display area | 1.40 m² | |
| Maximum weight | 40 kg/per shelf | |
| Outside dimension (L x W x H) | 1200 x 600 x 1500 mm | |
| Inside dimension (L x W x H) | 1155 x 319 x 920 mm | |
| Weight | 200 kg | |
