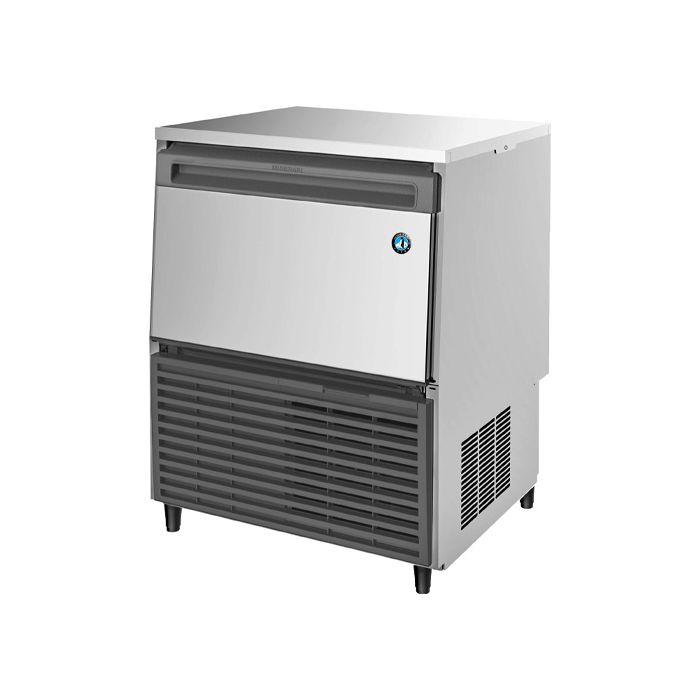

HOSHIZAKI CUBE ICE MAKER IM-45CA

Features

RM8,930.00

RM7,980.00

In Stock

Hoshizaki · Model: IM-45CA

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support

Key Specifications

ModelIM-45CA

BrandHoshizaki

Size (LxWxH) mm660 x 570 x 695

Weight (KG)52

Voltage1/220-240V / 50Hz

Warranty Two Years Manufacturing Defects

OriginJapan

Features

Zero clearance rear design for easy installation
Round front door and easy access to ice
Pull out air filter design for easy cleaning
Front water valve access for easy servicability
Stainless steel exterior provides hygienic and high qualified finish
Clean edges and its transparency streaked by a marbling effect
When the cell walls block the freezing water's expansion from all sides, while reaching up to -30°C during the cubing process
As the temperatures go down, the water keeps expanding and marbles start to form

Model	IM-45CA
Storage capacity	8 kg / 15 kg (bin senosr / max)
Voltage range	198-254V
AC supply voltage	1/220-240V / 50Hz
Electric comsumption (AT32°C/WT21°C)	310W
Amperage / starting amperage	2.0A / 16A
Refrigerant charge	R134a / 160g
Heat rejection (AT32°C/WT21°C)	670W 576 kcal/h
Ice production per 24h (15mm)	(AT10°C/WT10°C)	47 kg
	(AT21°C/WT15°C)	44 kg
	(AT32°C/WT21°C)	38 kg
Ice production per cycle (AT32°C/WT21°C)	Approx. 0.67 kg / 30 pcs
	Freeze cycle time per cycle 26 minutes
Water consumption per 24h (AT32°C/WT21°C)	0.10m³ ≈ 2.6 litres / 1 kg ice
Ambient temperature	1 to 40°C
Water supply	5 to 35°C / 0.07-0.78 Mpa / 7.25-116 PSI
Ice dimension (L x W x H)	28 x 28 x 32 mm (Standard size)
Dimension (L x W x H)	660 x 570 x 695 mm
Packing dimension (L x W x H)	760 x 680 x 870 mm
Net weight	52 kg
Gross weight	65 kg
