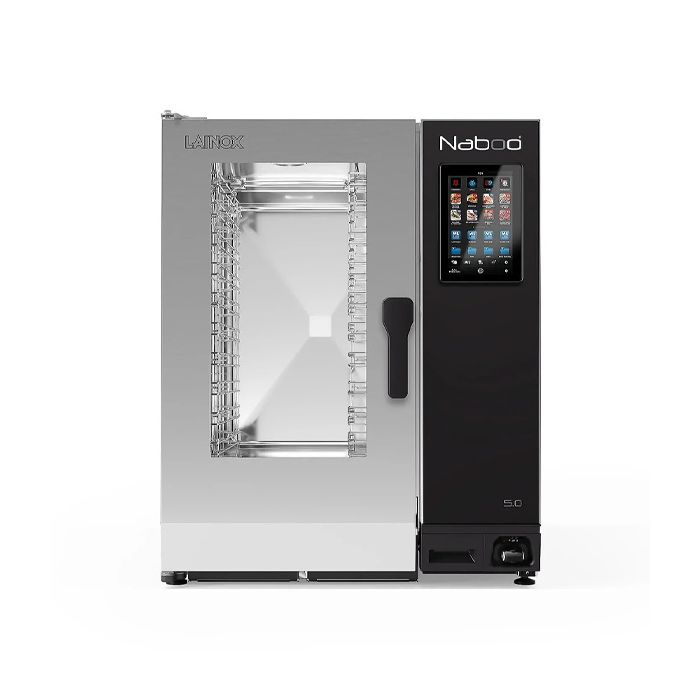

LAINOX Naboo Series Combi Oven with Direct Steam For Gastronomy NAE101B

calcActive())">
LAINOX Naboo Series Combi Oven with Direct Steam For Gastronomy NAE101B
Features
- SKU
- FBE-NAEV101R
RM60,390.00
RM55,230.00
Save to project
LAINOX Naboo Series Combi Oven with Direct Steam For Gastronomy NAE101B
In Stock
Lainox · Model: NAE101B
or /mo × months at 0% instalment
🚚 Free delivery (WM)
🔧 Installation included
🛡️ 2-year warranty
💬 WhatsApp support
Key Specifications
ModelNAE101B
BrandLainox
Energy TypeElectric
Size (LxWxH) mm852 x 797 x 1055
Weight (KG)130
Voltage3N-AC 400 V
Warranty One Year Manufacturing Defect
OriginItaly
Features
- Energy monitor
- VCS vapor cleaning system, new washing system
- Reduction in detergent consumption up to 30% less
- Long Life Component LLC
- New long-lasting components
- EMA easy maintenance access to reduce service intervention times
- With built-in WI-FI, Naboo boosted is always connected to Nabook Cloud, the comprehensive and free virtual kitchen assistant
- Up to 20% more powerful
- Pre-heating up to 320°C
- Thanks to the new energy supply systems, Naboo boosted results in savings of up to 16% less compared to previous models
- Naboo Coach, the virtual assistant which provides advice on cooking, the best washing cycle and lets you know when maintenance is required
- The exclusive Naboo boosted Autoclima controls the ideal climate, thus guaranteeing excellent cooking quality at all times
- Up to 15% less space by miniaturising the components (depending on model)
- Multilevel Plus
- Configurable controls display
- Editable recipes
- Broccoli in just 7 minutes. 24 chickens in 30 minutes
| Model | NAE101B |
| Capacity | 10 x GN 1/1 |
| 10 x EN (600 x 400) | |
| Power supply voltage | 3N-AC 400 V |
| Electrical absorption | 29A |
| Frequency | 50/60Hz |
| Total electric power | 18.7 kW |
| Differential switch | RCD cl. B |
| Steam heating power (with steam generator) | 18 kW/ - |
| Distance between layers | 70 mm |
| Max. total load | 50 kg |
| Max. tray load | 15 kg |
| Water connection | |
| Cold water inlet | Ø3/4 |
| Softened water inlet | Ø3/4 |
| Min. pressure | 2 bar |
| Max. pressure | 5 bar |
| Minimum water flow | 10 litres |
| Drainage slope | 4° |
| Discharge | Ø50 mm |
| Water quality | |
| Water hardness for steam generation connection | 6°dh / 9°fH |
| pH value | > 7.5 kW |
| Cl (chloride) - max | 30 mg/litres |
| Cl2 (free chlorine) | 0.1 mg/litres |
| Fe (iron) | 0.1 mg/litres |
| NH2Cl (monochloramine) | 0.2 mg/litres |
| Max. cold water temperature | 30°C |
| Max. softened water temperature | 50°C |
| Electrical conductivity | 50 - 200µS |
| Emissions | |
| Latent heat | 3366W |
| Sensitive heat | 2244W |
| Max. liquid discharge temperature | 85°C |
| Noisiness | < 50db |
| Maximum outer width | 852 mm |
| Maximum | Exterior depth - 848 mm |
| Exterior height - 1100 mm | |
| Minimum installation distance | Left side - 50 mm |
| Rear side - 50 mm | |
| Right side - 500 mm | |
| Cooking compartment width | 459 mm |
| Cooking compartment depth | 650 mm |
| Cooking chamber height | 791 mm |
| Dimension (L x W x H) | 852 x 797 x 1055 mm |
| Packing dimension (L x W x H) | 990 x 940 x 1260 mm |
| Net weight | 130 kg |
| Gross weight | 158 kg |
