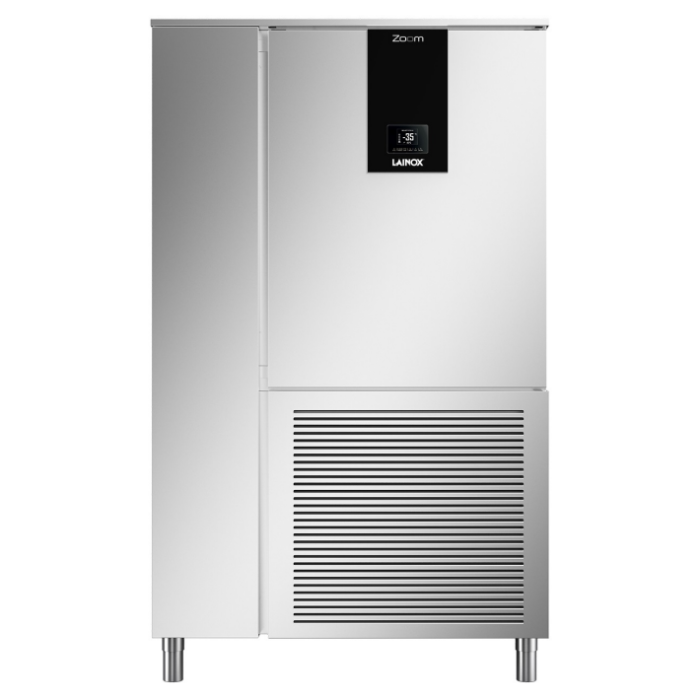

LAINOX Zoom Series Blast Chiller & Freezer With Graphic Control Display ZO122SA

Features

RM98,470.00

RM90,060.00

In Stock

Lainox · Model: ZO122SA

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support

Key Specifications

ModelZO122SA

BrandLainox

Size (LxWxH) mm1100 x 1080 x 1860

Weight (KG)255

Voltage400V-3N+PE 50Hz

Warranty One Year Manufacturing Defect

OriginItaly

Features

Condensing unit on board with air cooling
Blast chilling
Shock freezing
External sides and top in AISI 304 18/10 stainless steel th. 0,8mm (Scotch-Brite satin finish)
Top in stainless steel th. 1 mm (Scotch-Brite satin)
Inner in stainless steel with rounded corners
Cavity with central drain for discharge of washing water
Heating element in the door frame
Ergonomic full-height door handle
Heated core probe
Pre-cooling function
Automatic storing at end of blast chilling
Removable stainless steel guides, can be positioned by interlocking (GN - EN)
Capacitive TOUCH control with 2,8' high definition display placed on the door
Indirect blowing electronic fans, efficient but gentle on food
Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
High-ventilation evaporator to ensure the highest efficiency of the cooling system
High performance copper-aluminum condenser
Class T (ambient temperature +43°C)

Model	ZO122SA
Capacity	11 x GN 2/1 - 22 x GN 1/1 - 22 x 600 x 400
Chilling capacity	75 kg
Freezing capacity	50 kg
Temperature range	-18°C to 3°C
n° of doors	1 n°
n° of compartments	1 n°
Internal setup	Tray holder with double step guides
Number of load positions	11 n°
Pitch	75 mm
Refrigerant	R452A
Absorbed electrical power	3740 W
Cooling power	2724 W
Power supply	400V-3N+PE 50Hz
Nominal current	7.33A
Noise level	<70 dB(A)
Quantity charge gas	2300 g
Climate class	5
Yield per cycle (+65/+10°C) kg	70
Yield per cycle (+65/-18°C) kg	45
Energy cosumption for freezing function	0.07 kWh/kg
Energy cosumption for blast chilling function	0.22 kWh/kg
Insulation thickness	60 mm
Inner depth	930 mm
Door opening width	670 mm
Net height door	880 mm
Dimension (L x W x H)	1100 x 1080 x 1860 mm
Packed dimension (L x W x H)	1200 x 1180 x 2010 mm
Net weight	255 kg
Gross weight	295 kg
