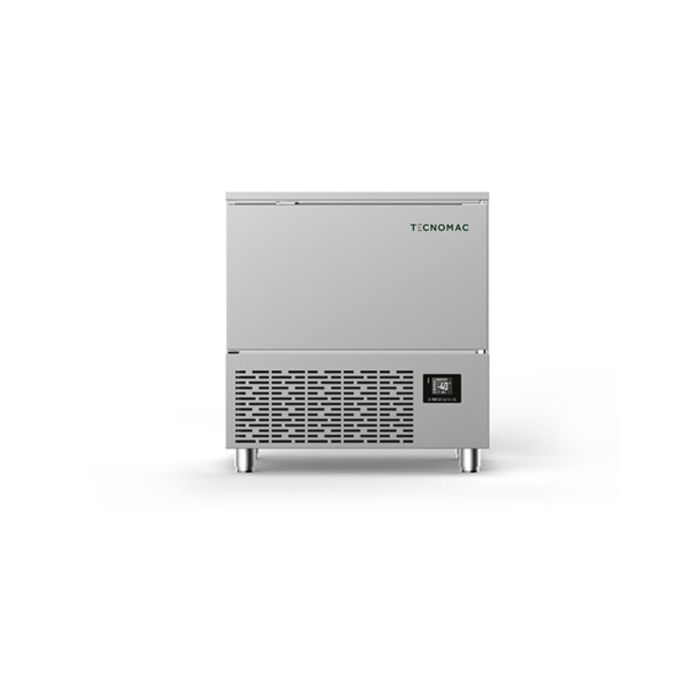

TECNOMAC 5 Trays Blast Chiller/ Freezer CM5

Features

SKU: SE-CM5

RM42,430.00

In Stock

TECNOMAC · Model: CM5

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support

Key Specifications

ModelCM5

BrandTECNOMAC

Size (LxWxH) mm790 x 850 x 850

Weight (KG)86

Voltage220-240 V ~ 50 Hz

Warranty One Year Manufacturing Defect

OriginItaly

Features

Latest generation fans
Insulation in high density expanded polyurethane (approximately 42 kg/m3), HCFC free - Thickness 60 mm
Core probe
Total inspectability of the room for maximum hygiene
Condensate collection tray
Air condensation
Heated core probe included
Refrigerant fluid R290
Evaporating coil in copper-aluminum, cataphoresis painted with non-toxic epoxy resin
2.8'' LCD graphic display and capacitive keys
IPX4 organized electrical panel on the front, easy to access

Model	CM5
Ice cream trays	165 x 360 x 120 mm	6
	250 x 360 x 120 mm	4
	250 x 360 x 120 mm	4
Supply
Power supply	220-240 V ~ 50 Hz
FLI - Max cold power	1559 W
FLA - Max cold absorption	7.84 A
Power cable	3G 1,5 mm²
Power plug	CE-Schuko
Performance
Blast chilling capacity (+65°C -> +10°C) EN ISO22042	20 kg
Freezing capacity (+65°C -> -18°C) EN ISO22042	15 kg
Energy consumption per blast cycle (+65°C -> +10°C) UNI EN ISO22042	0.08 kW/kg
Blast-down time (+65°C -> +10°C) UNI EN ISO22042	120 min
Freezing time (+65°C -> -18°C) UNI EN ISO22042	270 min
Technical data
Temperature range	-40°C / +5°C
Insulation thickness	60 mm
Number of rooms	1
Door type	Blind
Number of doors	1
Condensation type	Air
Plant type	Motor on board
	Ventilated
Compressor type	Hermetic
Refrigerant gas	R290
GWP refrigerant gas	3
Refrigerant gas quantity	131 g
Cooling power ASHRAE lbp	1200 W
Sound power	<70 dbA
Expansion valve type	Mechanics
Defrost type	Open door
Defrost water evaporation	Automatic
Interior lighting	Not present
Cooling power	2002 W
Climatic class	5
Heat expelled	2500 W
Air Volume	1 m³/h
Capabilities
GN guides step	68 mm
Step guides EN	17.5 mm
Step IC guides	17.5 mm
5 litres tanks (360 x 165 x 120 mm)	6
5 litres tanks (360 x 250 x 80 mm)	4
Carapine 7 litres (Ø200 x 250 mm)	4
Dimension
Foot height	70-110 mm
Door light	Width	670 mm
	Height	370 mm
Door depth open 90°	1545 mm
Internal depth	410 mm
Dimension (L x W x H)	790 x 850 x 850 mm
Packing dimension (L x W x H)	850 x 900 x 995 mm
Net weight	86 kg
Gross weight	101 kg
