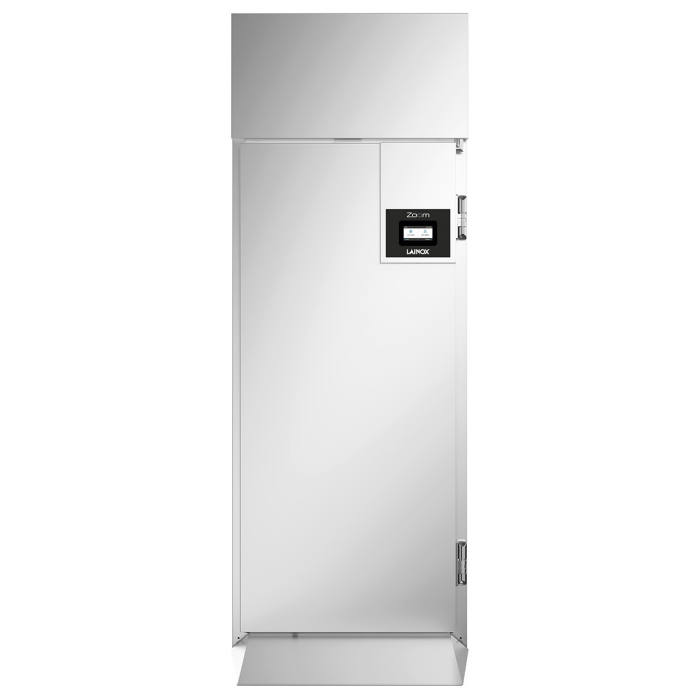

LAINOX Zoom Series Walk In Blast Chiller & Freezer Self -Contained Air Condensing Unit ZO201PAL

Features
SKU
FBE-ZO201PAL
RM172,370.00
RM157,660.00
Email to a Friend
In Stock

Lainox · Model: ZO201PAL

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support
Key Specifications
ModelZO201PAL
BrandLainox
Size (LxWxH) mm890 x 1350 x 2400
Weight (KG)600
Voltage3N AC 400V - 50 Hz
Warranty One Year Manufacturing Defect
OriginItaly

Features

  • Condensing unit on board with air cooling
  • Blast chilling
  • Shock freezing
  • Panel construction
  • Stainless steel exterior (Scotch-Brite satin)
  • Inner in stainless steel with rounded corners
  • Inside bottom and floor die-formed leakproof
  • Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
  • Thick stainless steel internal bumper to avoid damage caused by the trolley
  • Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
  • High-ventilation evaporator to ensure the highest efficiency of the cooling system
  • Anti-condensation resistance
  • Hinged door with gasket and closing ramp system
  • Ergonomic full-height door handle
  • Heated core probe, with 4 measuring points
  • Pre-cooling function
  • Automatic storing at end of blast chilling
  • Indirect blowing electronic fans, efficient but gentle on food
  • 5” high-definition IPS capacitive TOUCH display, easy to use USB connection for uploading and downloading data and recipes
  • Circuit breaker for compressor protection
  • Class NT (ambient temperature +38°C)
Model ZO201PAL
Capacity 1 trolley (20 x GN 1/1 or 15 x GN 1/1 or 15 x EN 600 x 400)
Chilling capacity 60 kg
Freezing capacity 30 kg
Temperature range -18°C to 3°C
Defrost type Door open
n° of doors 1 n°
n° of compartments 1 n°
Refrigerant R452A
Absorbed electrical power 7546 W
Cooling power 4920 W
Power supply 3N AC 400V - 50 Hz
Nominal current 9.03A
Noise level 42.9 dB(A)
Floor height 60 mm
Insulation thickness 80 mm
Inner depth 830 mm
Door opening width 680 mm
Net height door 1820 mm
Dimension (L x W x H) 890 x 1350 x 2400 mm
Packed dimension (L x W x H) 1150 x 1550 x 2590 mm
Net weight 600 kg
Gross weight 720 kg
FILE Spec Sheet 274.73 kB Download ↓
