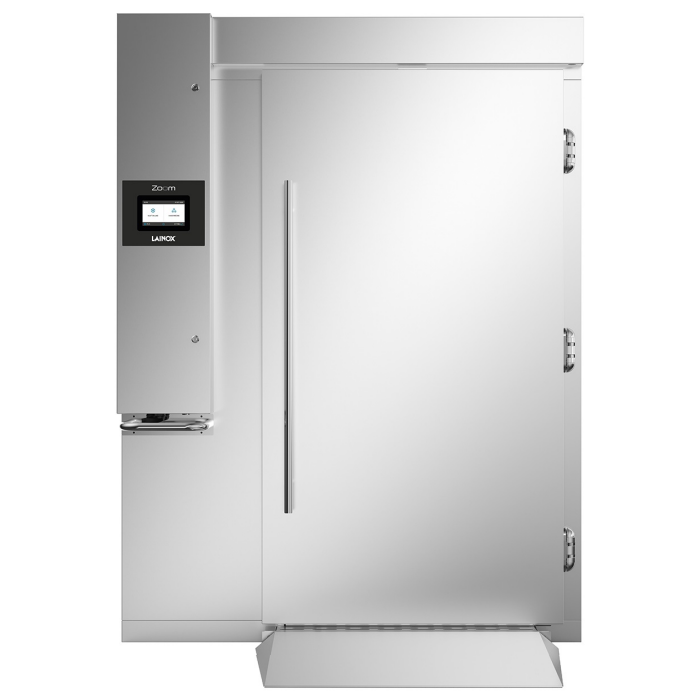

LAINOX Zoom Series Walk In Pass Thru Blast Chiller/Freezer, Remote Condensor Unit With Loading Ramp Trolley And Heated Core Probe And 7" Touch Screen Display ZO402SP

Features
SKU
FBE-ZO402SP
RM468,970.00
RM428,940.00
Email to a Friend
In Stock

Lainox · Model: ZO402SP

or /mo × months at 0% instalment

🚚 Free delivery (WM) 🔧 Installation included 🛡️ 2-year warranty 💬 WhatsApp support
Key Specifications
ModelZO402SP
BrandLainox
Size (LxWxH) mm1500 x 2725 x 2300
Weight (KG)976.22
Voltage400V-3N+PE 50Hz
Warranty One Year Manufacturing Defect
OriginItaly

Features

  • Remote condensing unit with high power, with protection cover
  • Blast chilling
  • Shock freezing
  • Panel construction
  • Stainless steel exterior (Scotch-Brite satin)
  • Inner in stainless steel with rounded corners
  • Inside bottom and floor die-formed leakproof
  • Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
  • Thick stainless steel internal bumper to avoid damage caused by the trolley
  • Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
  • High-ventilation evaporator to ensure the highest efficiency of the cooling system
  • Anti-condensation resistance
  • Hinged door with gasket and closing ramp system
  • Vertical ergonomic door handle with magnetic closure
  • External stainless steel protection to protect the control-board
  • Heated core probe, with 4 measuring points
  • Pre-cooling function
  • PLUS functions
  • Customised blast chilling and blast freezing cycles (300 cycles can be memorised)
  • Automatic storing at end of blast chilling
  • Indirect blowing electronic fans, efficient but gentle on food
  • 7” high-definition IPS capacitive TOUCH display, easy to use
  • Processes identifiable through photos
  • USB connection for uploading and downloading data and recipes
  • Circuit breaker for compressor protection
  • Electrical connections positioned frontally in the panel equipped with safety locks
Model ZO402SP
Capacity 2 trolleys (20 x GN 2/1 - 40 x GN 1/1 or 15 x GN 2/1 - 30 x GN 1/1 or 15 x EN 600 x 400)
Chilling capacity 360 kg
Freezing capacity 240 kg
Temperature range -18°C to 3°C
Internal setup Bumpers
n° of doors 2 n°
n° of compartments 1 n°
Refrigerant R452A
Absorbed electrical power 1500 W
Cooling power 18410 W
Power supply 400V-3N+PE 50Hz
Nominal current 6.86A
Noise level -
Climate class 5
Yield per cycle (+65/+10°C) kg 340
Yield per cycle (+65/-18°C) kg 220
Floor height 60 mm
Insulation thickness 80 mm
Inner depth 2240 mm
Door opening width 880 mm
Net height door 1820 mm
Dimension (L x W x H) 1500 x 2725 x 2300 mm
Packed dimension (L x W x H) 2400 x (2 x 1760) x 1740 mm
Net weight 976.22 kg
Gross weight 1103.22 kg
